Spoke information

With so many hub and rim combinations available it can be hard to get the correct spoke length for a wheel build, particularly small wheels.

We can produce spokes as short as 25mm and cut in 1mm increments

Spoke diameters available are: 12g, 13g, 14g,  or 15g



Contact us if you require anything not listed on this website.



We can make spokes to match your samples.  Contact us for this service.

Spoke length calculation

How do I know the spoke lengths ?

Use a spoke calculator to determine your spoke length. Links for some calculators below.

 SAPIM spoke calculator

DT SWISS spoke calculator

Wheelpro spoke calculator





To determine spoke lengths, classic method.

If you prefer to use a pencil and paper and your mathematics skills.

Measuring spokes

Using a Vernier caliper to measure spoke diameter.



This is a spoke is 13g (2.3mm)

Spoke diameters available are;

15g (1.8mm) 14g (2.0mm) 13g (2.3mm) 12g (2.6mm)

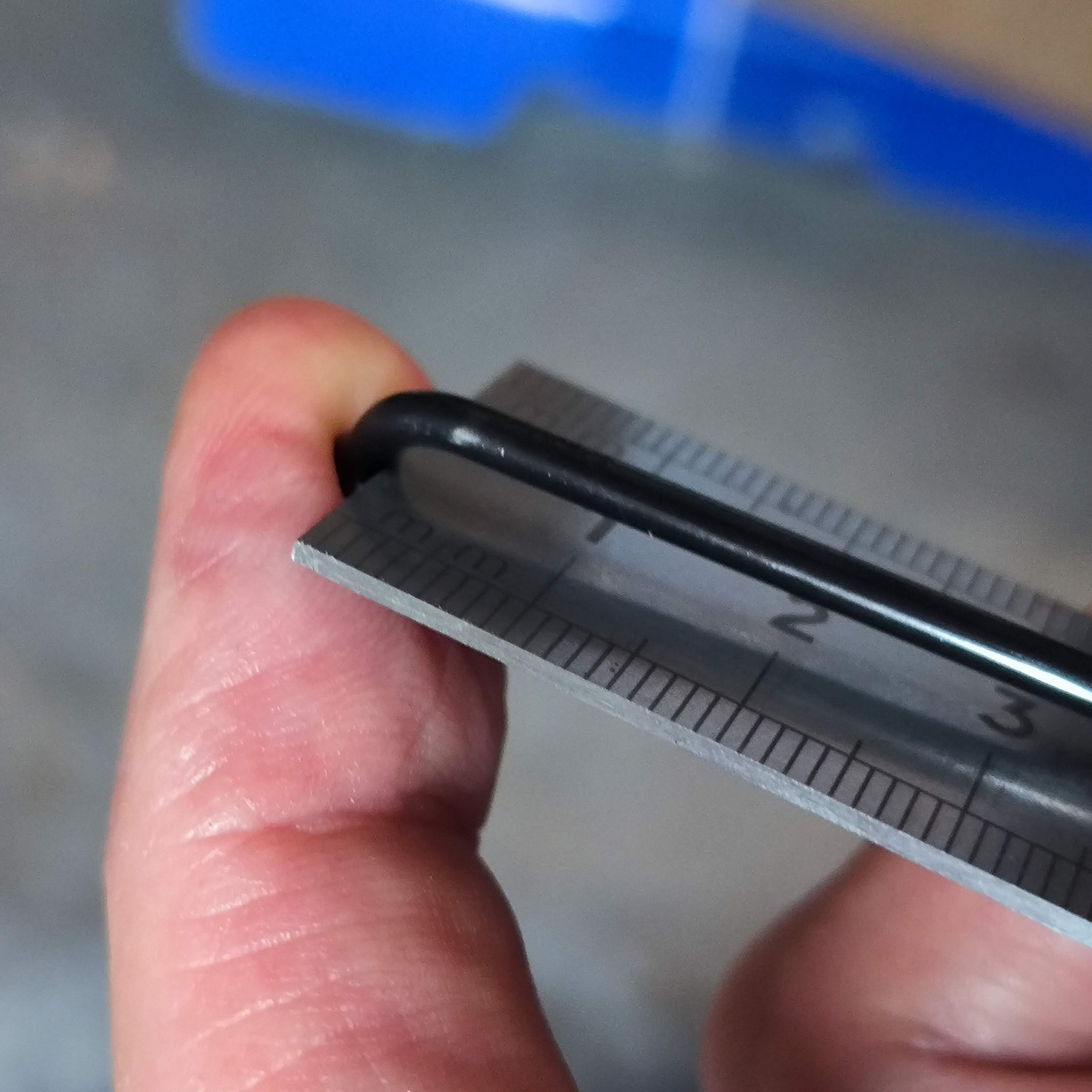

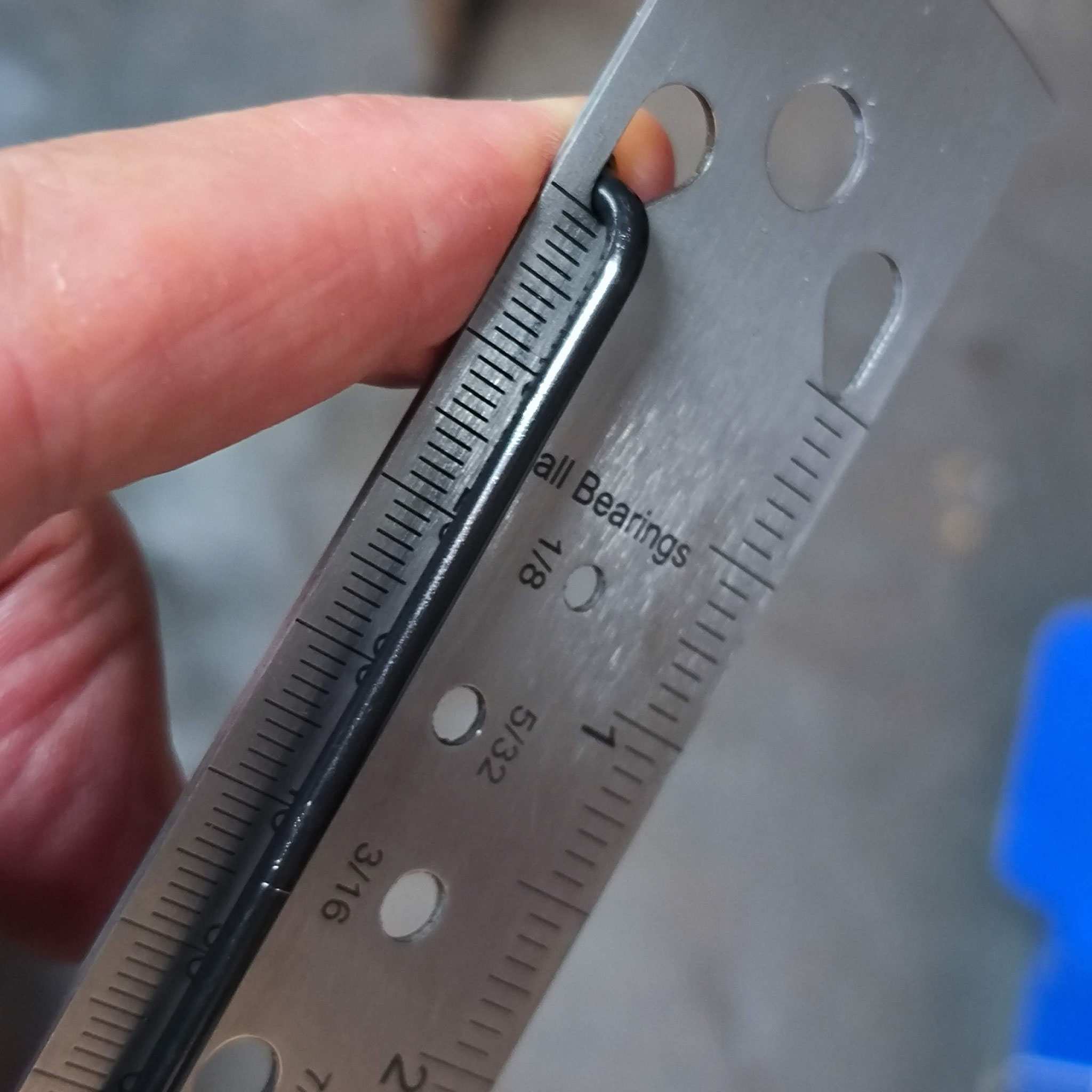

Measuring a J bend spoke on a spoke ruler

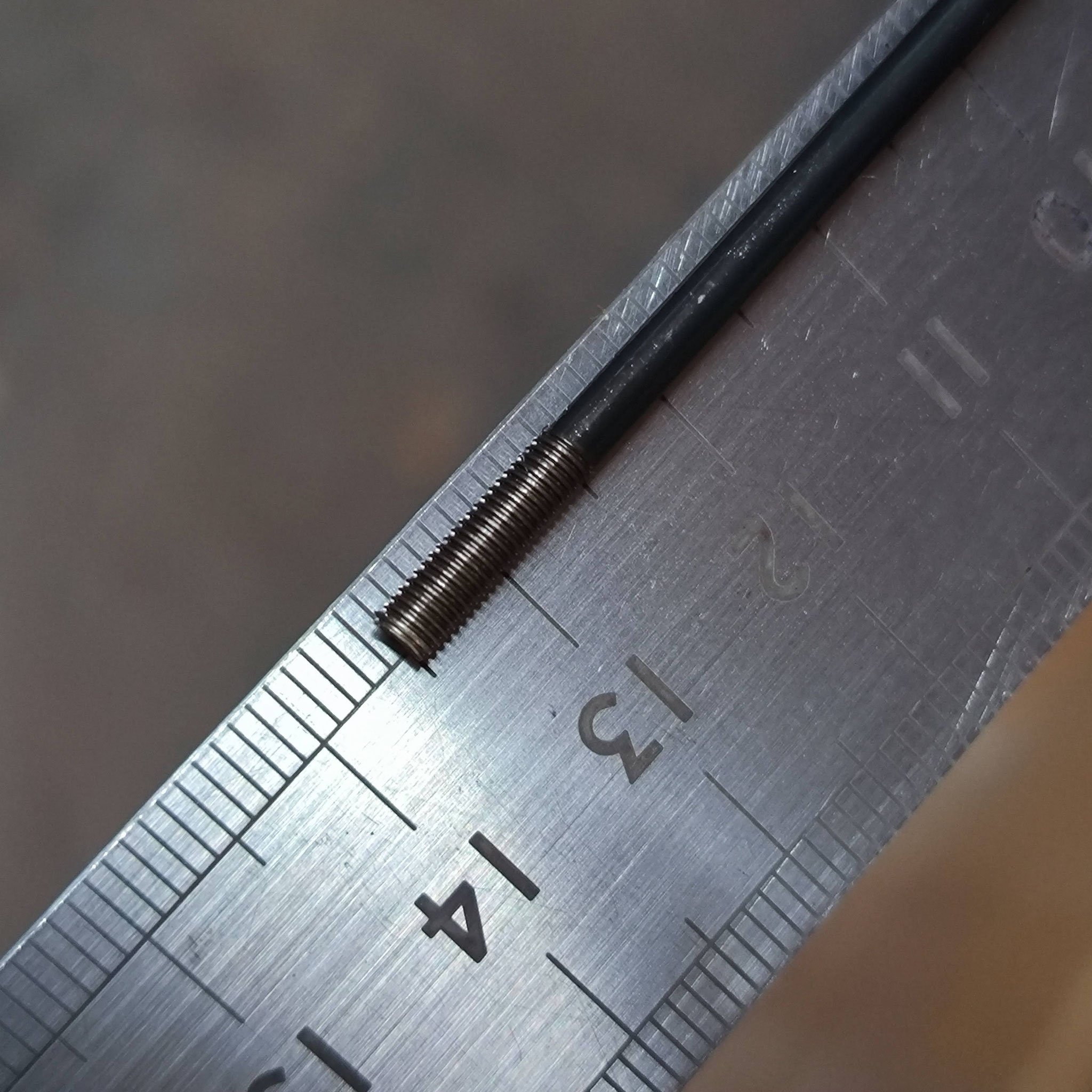

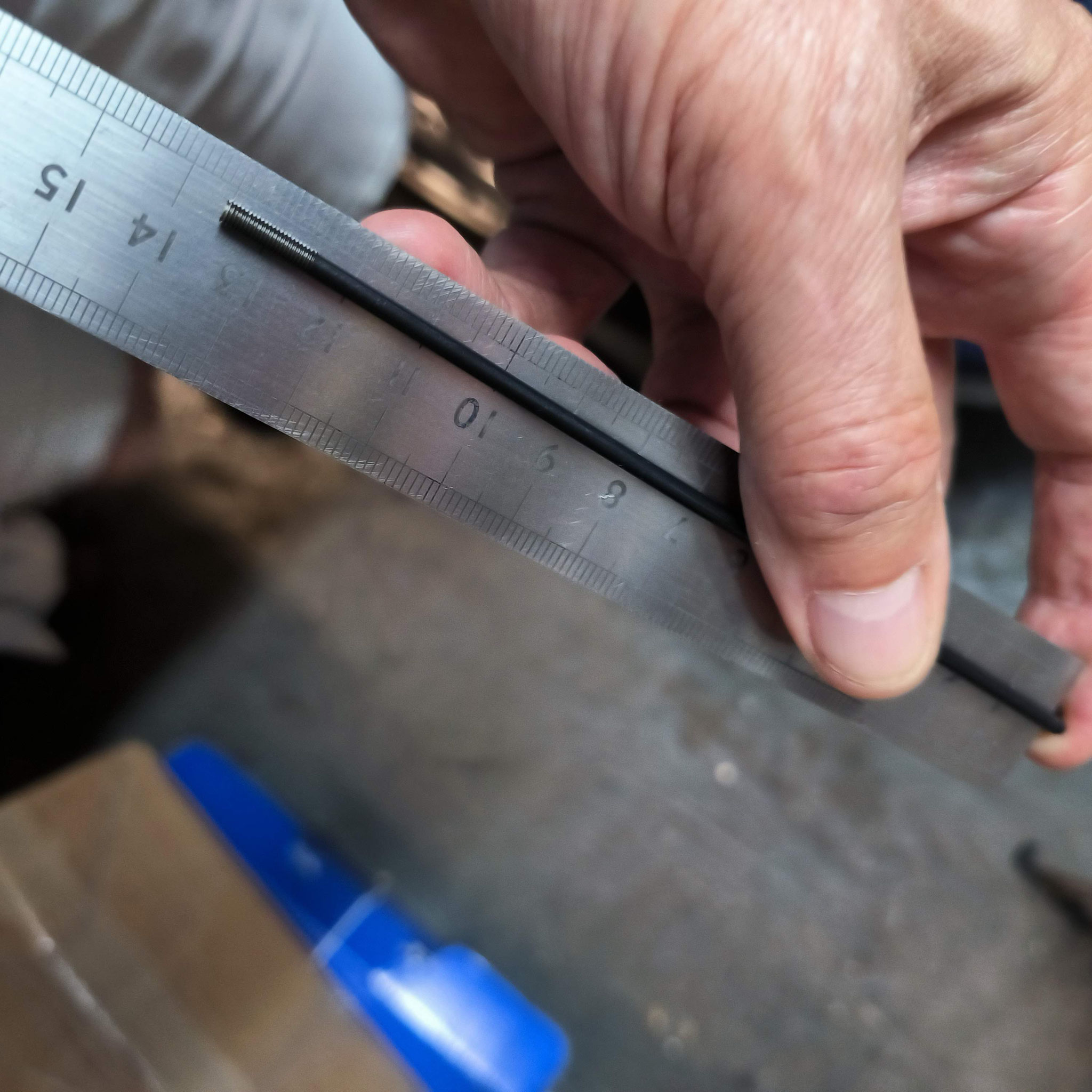

Reading the spoke length on the spoke ruler.

This shows a spoke length of 259mm


Ebike Spoke information



Ebike wheels with large hub motors mean that regular spoke lacing patterns are not possible used and seen on standard bicycle rims. This limits the lacing patterns to radial or single cross as seen in the photo.

Radial or 0-cross lacing pattern is by far the easiest pattern to lace, but where torque needs to be transmitted between the hub and rim, there will always be flexing



The torque comes from the motor and pedalling, and resulting flex can cause fatigue and wear of the spokes and loosening of the nipples. This results in broken spokes as they become loose. The majority of wheel builders would advise that you should never use radial lacing in drive wheels. However, with a hub motor, the flange diameter is much larger so the relative amount of twisting to cause loosening and flexing is minimal in comparison to a standard bicycle wheel.

Measuring ERD  (effective rim diameter)

Measuring (ERD) Effective Rim Diameter

An essential measurement when determining spoke lengths.

There are many databases containing measurements of popular rim ERDs. These may be correct and accurate however, it is always best to take your own measurements, at least the first time you work with a hub or rim you have not used before.



ERD is the wheel rim diameter measured at the nipple seats in the rim spoke holes, plus the thickness of the two nipple heads. See the photo above. If you need more information of how to measure why not read the Park Tools article here



Plain gauge Spokes

Spokes for use in any type of general purpose or heavy-duty application. They have a constant diameter throughout their length, which makes them slightly heavier than butted spokes. Straight gauge spokes offer a stiffer ride than single or double butted spokes because of their thicker cross section.

Butted spokes

Butted spokes can be identified by a change in diameter between the neck and the body of the spoke.

Single butted spokes are slightly heavier than double butted, but are also slightly less expensive. Single and double butted spokes are used for similar applications. Single butted spokes with 2.3mm neck diameters are also useful for wheels to be rebuilt with used hubs that have worn mounting holes in the flanges.

  • We offer Sapim Single butted spokes from stock

SPOKE WASHERS

Brass spoke washers fit on to the spoke before lacing the wheel if the hub spoke hole diameter is greater than 0.3mm of the spoke diameter. These washers reduce the load change movements that lead to spoke elbow failure

Spoke nipples

Our 14g spoke prices include silver brass 12mm long nipples 12g & 13g spokes are supplied with 14mm long nipples.

Longer nipples are used on thicker rims.

Spoke nipple diameter sizes can be 4mm, 5mm, or 6mm depending upon the rim holes in your rim.



“Proloc" are nipples with a thread lock incorporated



Brass spoke Nipples

Brass nipples are durable and offer high strength under extreme tension and in corrosive environments. Brass nipples are available in silver and black finish.

 Available in 12 / 14 / 16mm lengths.

12g, 13g, 14g nipples available in a selection of diameters to suit wheel rim requirements.



Alloy spoke Nipples

Aluminium nipples are ultra-light and offer optimal weight reduction for minimal cost.

We offer Sapim in a variety of colors also , DT Swiss aluminium nipples which  are available in silver finish.



You could save 22grams on a 32 spoke wheel using alloy nipples in comparison to using brass nipples like for like.
